Guangzhou Luckydoor Electronic Equipment Co., Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | Luckydoor |
| Model Number : | W-620 (K-620G) |
| Certification : | CE FCC Rohs |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 50K-60Kpcs / month |
| Delivery Time : | 5-8 working days |
1D 2D USB Handheld Barcode Scanner QR Code Reader Android Barcode Scanning Gun
Product Description:
W-620 imager barcode scanner is good performance on reading 1D and
2D barcodes. With Excellent Error-Correcting Performance, it can scan
the Decodes for Damaged lncomplete Barcode, fuzzy barcode, Twsited
Wrinkledbarcode, Reflective barcode, Colorful and Long Barcode etc.
It is easy to deal with mold and code, incomplete deformation,
damaged pollution, screen code, large format and other difficult
bar code. It is the best assistant in retail stores, supermarket,
library, hospital, pharmacy, express, warehouse and other
industries.
Product Features:
• Excellent Error-Correcting Performance
• Excellent Decoding Ability, Support All 1D/2D Bar Code In The Market
• Higher decoding accuracy
• Support Wechat, Alipay and other payment barcodes
• Longer service life of the wire
• Plug and play, easy to set up, and quick to scan
Product Specification:
| Light Source | 617nm LED Aimer, White LED |
| Decode Capability | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, |
| Code39,Code93, Interleaved 2 of 5, Industrial 25, | |
| Matrix 2 of 5,Code11, CodeBar,MSI,RSS-14, RSS- Ltd, | |
| RSS- Exp,Standard 2 of 5, Plessey, ChinaPost 25, | |
| GS1 Composite | |
| 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, | |
| Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, | |
| Code16K | |
| Scan Type | Image CMOS |
| Scan Mode | Manual/Continuous/Auto-inductive Scanning |
| Scan Angle | Skew ±60°, Roll 360°, Pitch ±60° |
| Resolution | ≥5mil |
| Depth of field | 60-250mm |
| Bit Error Rate | Less than 1/5 million |
| Indicator | LED, Buzzer |
| Interface | USB-HID, RS232 |
| Dimension | 90mm*66mm*173mm |
| Weight | 115g |
| Material | ABS+PC |
| Cable | 1.8M straight |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -40℃~70℃ |
| Humidity | 5%~95%(Non-condensing) |
| Drop Resistance | Withstands multiple 3m drops to concrete |
| Voltage | DC5V±5% |
| Working Current | 135mA; |

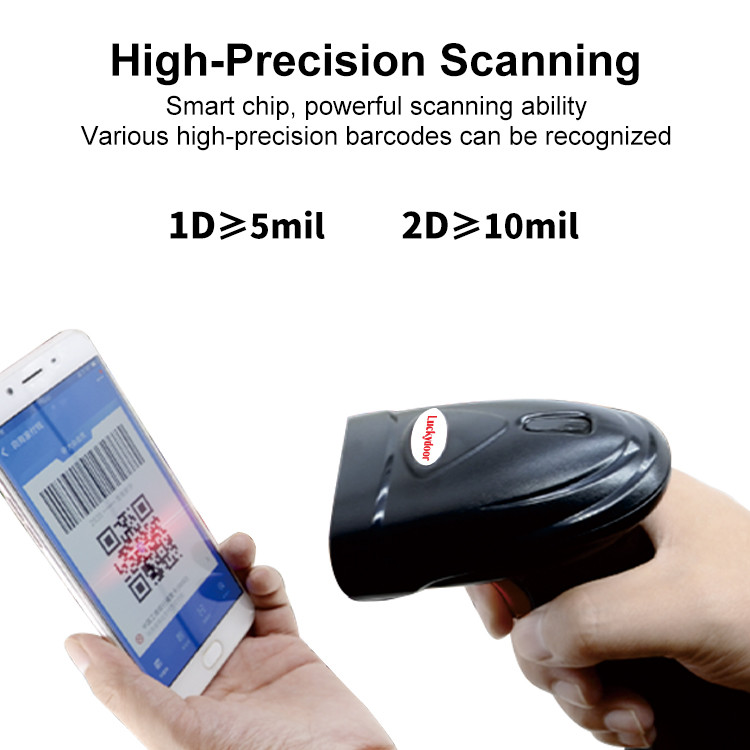

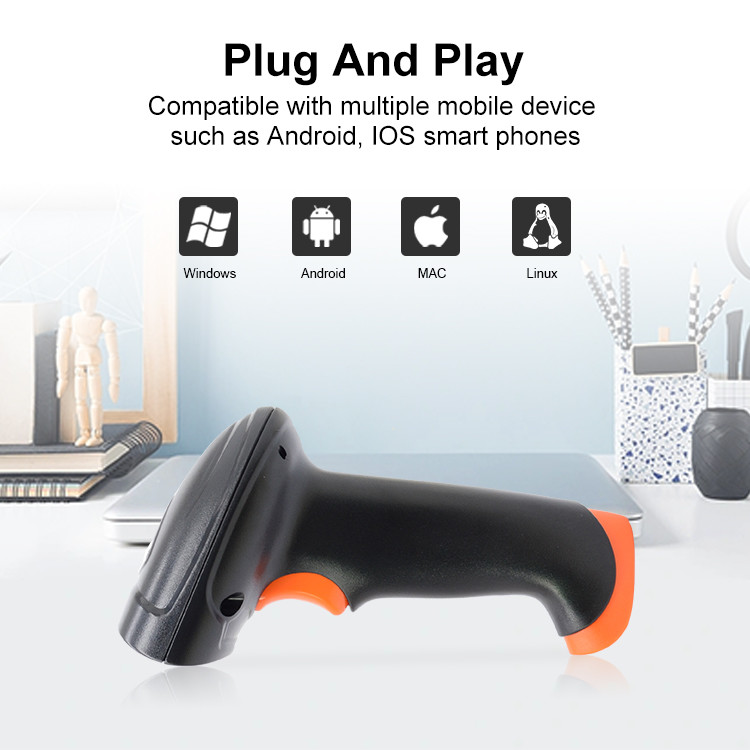

Product Pictures:
Product Advantage:
• Affordable competitive price
• MOBILE PAYMENTGOODS SCANNING, Easy capture 1D&2D barcode on Screen&Printed paper or film
• Good ergonomic design
• Excellent scanning sensitivity and decoding capability
• Good at reading worn code, DPM, high reflecting,high density
• Competent for harsh envionment
• More scenarios available
FAQ:
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Barcode Scanner Engine/ Barcode Scanner Module/ 2D Wired or
Wireless Barcode Scanner/ 1D or 2D Desktop Barcode Scanner/ 1D CCD
or Laser Barcode Scanner, Thermal receipt / label printer, etc.
|
|
