Guangzhou Luckydoor Electronic Equipment Co., Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | Luckydoor |
| Model Number : | MC33 |
| Certification : | CE FCC Rohs |
| Payment Terms : | Western Union, T/T, MoneyGram |
| Supply Ability : | 5K-10K per month |
| Delivery Time : | 5-8 working days |

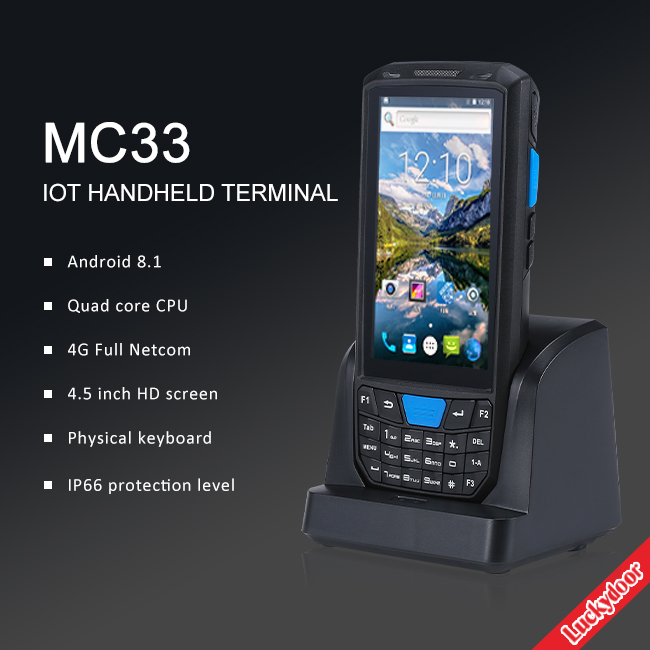

Android PDA With Honeywell Scan Module,PDA Android Barcode Scanner For Logistic
Product Description:
This Android pda devices use 4.5inch touch screen which resolution 480*854 ,it is lightweight ,multifunction android handheld computer with keyboard,suitable for manufacturing factories , warehouse, store back room etc ,Improve users productivity and efficiency to a new level ,the 4G technology makes work easier, more convenient and more efficient.
Product Features:
• 4.5 inch HD screen,high speed and performance Quad core
• Android 8.1 operating system
• RAM and ROM :2G+16G / 3G+32G
• High capacity battery 4200mAh
Product Specification:
| Dimensions | 166mm(L)X77.5mm(W)X22mm(D) |
| Weight | <500g |
| Display Screen | 4.5inch IPS 480*854 px with Multi-point touch capactive screen |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface | Type-C USB |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4200mAh |
| Frequency | 8ohm 1W speaker |
| Key | Silicone keyboard |
| OS | Android 7.0 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
| RAM | 1G/2G RAM |
| Flash ROM | Standard 8G/16G NAND Flash Storage |
| micro SD/TF port (Max up to 32G) | |
| WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
| WCDMA 3G | B1,B2,B5,B7,B8 |
| GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
| bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Camera | 8MP autofocus camera with flash |
| GPS | Support A-GPS |
| Operating | -20°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP66 |
| 1D Laser Scanner | Symbol 955, HoneywellN4313,Mingde966 |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| CMOS Scanner | Honeywell N6603,NewLand 3096 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
Product Application:
• Warehouse picking and packing
• Inventory Management
• Price checking for retail
• Convince of parcel delivery
Product Advantage:
• 4.5 inch HD screen and High speed quad core
• 4200mAh high capacity battery support over 12hours operating
• Scan module is optional :Newland or Honeywell
• 2cm-5cm NFC function optional
Product Pictures:
FAQ:
1, What is a PDA scanner?
PDA scanner or PDA android scanner ,is handheld device with an integrated (usually build in)barcode scanner and operating system (most use system is Android),it is for mobile workers , the scanner include 1D and 2D scan module
2, What the scanner used in this Pda android scanner ?
It is optional ,1d and 2d honeywell scan module both available
3, It is the battery detachable ?and spare battery available ?
Yes ,the pda android scanner battery is detachable ,spare battery is optional with charging cradle
|
|
