Barcode Scanner Scan Engine , Embedded 1D 2D QR CMOS Barcode Reader Module
Product Description:
The barcode scanner scan engine is a perfect choice for your OEM design. It brings the benefits of bar code scanning to all types of OEM devices. Now kiosks, medical instruments, diagnostic equipment, lottery terminals, vending machines and countless other appliances can all be equipped with this leading-edge scanning technology and reliability.
Product Features:
• Read major 1D bar codes, GS1 Databar linear and stacked bar codes
• High brightness, dark environment scanning
• Multiple interfaces :USB and TTL-232
• Snappy on-screen barcode capture
• Slimmer, more compact construction
Product Specification:
| Sensor | 640×480 CMOS(Global Shutter) |
| illumination | White LED |
| Aim | Red LED |
| 2D Barcodes | QR Code,Micro QR,Data Matrix ,PDF417,Micro PDF417,Aztec,Maxicode,Hanxin,Dotcode |
| 1D Barcodes | Code128,EAN-13,EAN-8,UPC-E,UPC-A,ISBN,ISSN, Code11,Interleaved 2 of 5,Code39,Code93,Code32,Codabar,Matrix 2 of 5,Industrial 25,IATA25,MSI Plessey,GS1 DataBar,Plessey,Febraban,Composite |
| Resolution | ≥5mil |
| DOF | EAN-13 45mm-390mm (13mil 13 digit) Code39 45mm-180mm (5mil 7 digit) Code128 45mm-380mm (13mil 10 digit) QR Code 20mm-220mm (15mil 30 digit) Data Matrix 40mm-160mm (10mil 100 digit) PDF 417 50mm-140mm (6.67mil 30 digit) |
| Print Contrast | ≥10% |
| Scan angle | Rotation 360°, elevation ± 55°, declination ± 55° |
| Field of view | Horizontal 43°, Vertical 33° |
| Interface | USB,USB-COM,TTL-232 |
| Measurement | 25.2mm*12mm*13mm |
| V/C/P | DC 3.3V/170mA |
| Standby Current | 70mA |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+70℃ |
| Humidity | 0% to 95% RH (Non-condensing) |
| Lux | 0~100,000LUX |
Product Advantage:
Compact and small size easily fits into devices
Support second development
Widely use in retail ,access control ,logistic applications
Quickly and accurate read both screen and paper barcodes

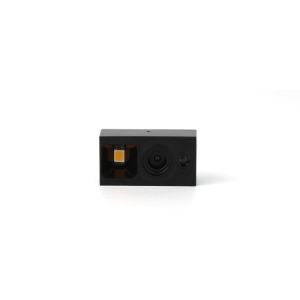

Product Pictures:
FAQ:
1, What's the delivery time of this barcode scanner module?
Depend on quantity of your order, sample lead time in 3 work days after receiving payment.
2, Can I process further development base on my special requirements ?
Yes ,this barcode scanner scan engine support second development
3, How to buy one unit of this product to test the performance ?
Can order directly from us ,and delivery the sample to you directly by Fedex ,DHL etc
|
|
